Portable Multi-parameter 12&15 Inch Modular Plug-in Patient Monitor ECG NIBP RESP TEMP SPO2 PR

SKU: 800234

Screen: 15inch
Preis:
$759.99

Descripción

Portable Multi-parameter Patient Monitor is adaptable to adult, pediatric and neonatal usage. It can monitor vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP.Monitored date can be displayed, reviewed, stored and printed.

Features:

12" high resolution color TFT LCD display,easy and convenient to operate.

Modular design,the modules can be configured and combined flexibly and conveniently, meets

the requirements of different departments on different parameters.

Various language operating systems, support up to 16 languages.

Drug solubility calculation function, Arrhythmia analysis function.

The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

Built-in lithium battery,AC and DC,can provide long-term monitoring after power failure.

Widely used in the Department of internal medicine, Dental practices (both pediatric and adult), oral surgery centers surgery, operation room,obstetrics and Gynecology, pediatrics, emergency center,ICU,CCU.

Standard parameters:ECG, RESP, NIBP, SPO2, TEMP, PR.

Optional:Dual IBP , CO2 , CSM module , Gas

Specifications:

ECG

Lead Mode:5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection:I, II, III, avR, avL, avF, V,

Waveform:2 ch

Lead mode:3 Leads ( R, L, F or RA, LA, LL)

Lead selection:I, II, III,

Waveform:1 ch

Gain:´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV, auto

HR and Alarm

Range:

Adult:15 ~ 300 bpm

Neo/Ped:15 ~ 350 bpm

Accuracy:± 1% or ± 1bpm,which great

Resolution:1 bpm

Sensitivity:> 200 (uV P-P)

Differential Input Impedance:> 5 MΩ

RESPARATION:

Method:Impedance between R-F(RA-LL)

Differential Input Impedance:>2.5 MΩ

Measuring Impedance Range:0.3~5.0Ω

Base line Impedance Range:0 – 2.5  KΩ

Bandwidth:0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult:0 ~ 120 rpm

Neo/Ped:0 ~ 150 rpm

Resolution:1 rpm

Accuracy:±2 rpm

Apean Alarm:10 ~ 40 S

NIBP

Method:Oscillometric

Mode:Manual, Auto, STAT

Measuring Interval in AUTO Mode

 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode:5 Min

Pulse Rate Range:40 ~ 240 bpm

Alarm Type:SYS, DIA, MEAN

Measuring and alarm range:

Adult Mode

SYS :40 ~ 270 mmHg

DIA :10 ~ 215 mmHg

MEAN:20 ~ 235 mmHg

Pediatric Mode

SYS:40 ~ 200 mmHg

DIA:10 ~ 150 mmHg

MEAN:20 ~ 165 mmHg

Neonatal Mode

SYS:40 ~ 135 mmHg

DIA:10 ~ 100 mmHg

MEAN:20 ~ 110 mmHg

Overpressure Protection

Adult Mode:297±3 mmHg

Pediatric Mode:240±3 mmHg

Neonatal Mode:147±3 mmHg

SpO2

Measuring Range:0 ~ 100 %

Alarm Range:0 ~ 100 %

Resolution:1 %

Accuracy:

70% ~ 100%  ±2 %

0%  ~  69%  unspecified

Actualization interval:about 1 Sec.

Alarm Delay:10 Sec.

Pulse Rate

Measuring and Alarm Range:0~254bpm

Resolution:1bpm

Accuracy:±2bpm

I.5TEMP measurement:

Channel:1

Measuring and Alarm Range:0 ~ 50 °C

Resolution:0.1°C

Accuracy:±0.1°C

Actualization interval:about 1 Sec.

Average Time Constant:< 10 Sec.

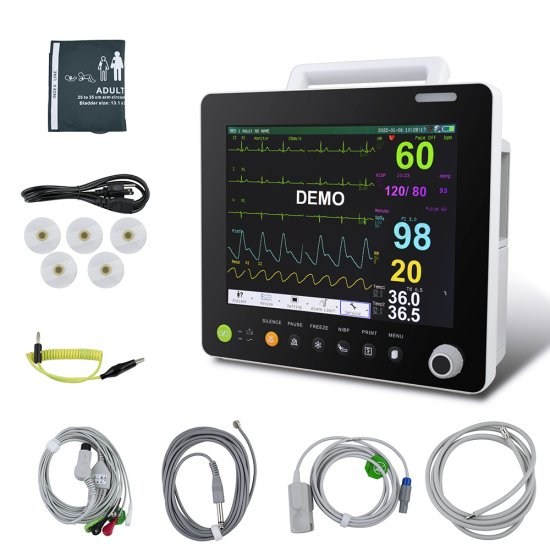

Package List:

1×Patient Monitor

1×EKG Lead wire

1×NIBP Cuff

1×NIBP Extension Cable

1×SpO2 Sensor

1×Temp Sensor

1×Ground Cable

5×Electrode

1×User Manual
