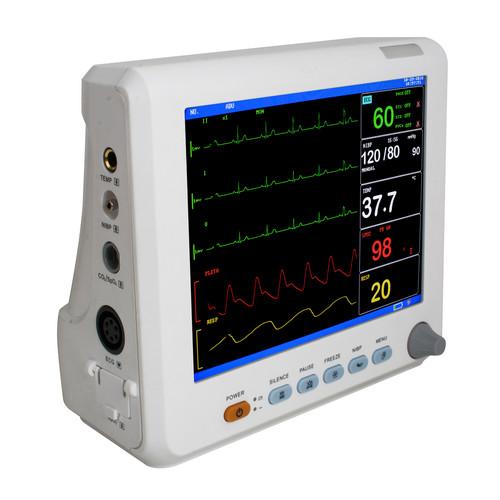

Portable 6-in-1 patient monitor 8-inch high-resolution color display tracks vital signs

SKU: 800217-9691

Preis:
$354.49

Description

  • 8 inch TFT color screen
  • Exquisite design suitable to moving operation

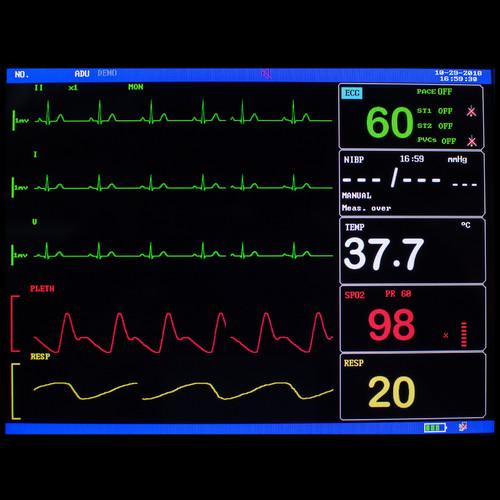

  • Various interfaces: standard screen, trend screen, oxyCRG screen, NIBP list screen, big front screen.
  • Real-time S-T segment analysis, pace-maker detection.
  • Built-in rechargeable lithium battery, convenient for patient moving.
  • Suitable for adult, pediatric and neonatal patient
  • Standard Configuration: SpO2, PR, NIBP, ECG, RESP, TEMP

Description:



Portable Patient Monitor is adaptable to adult, pediatric and neonatal usage. It can monitor vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP. It integrates parameter measuring modules, display and recorder in one device, featuring in compactness, lightweight and portability. Replaceable built-in battery facilitates transportation of patient. Large high-resolution display provides clear view of 5 waveforms and full monitoring parameters.



Technical Parameters:

ECG:

Lead Mode:5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection:I, II, III, avR, avL, avF, V,

Waveform:2 ch

Gain:2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV

Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal)

Accuracy:± 1% or ± 1bpm,which great

Resolution:1 bpm

ST measurement Range:-2.0-+2.0mV

Sweep Speed:12.5 mm/s,25mm/s,50mm/s

Alarm:Available

Review:Available

RESP:

Method Impedance between R-F(RA-LL)

Measuring Range:Adult  0 ~ 120 rpm,Neo/Ped 0 ~ 150 rpm

Resolution:1 rpm

Accuracy:±2 rpm

NIBP:

Method:Oscillometric

Mode:Manual, Auto, STAT

Measuring and alarm range

Adult Mode

SYS:40 ~ 270 mmHg

DIA:10 ~ 215 mmHg

MEAN:20 ~ 235 mmHg

Pediatric Mode

SYS:40 ~ 200 mmHg

DIA:10 ~ 150 mmHg

MEAN:20 ~ 165 mmHg

Neonatal Mode

SYS:40 ~ 135 mmHg

DIA:10 ~ 100 mmHg

MEAN:20 ~ 110 mmHg

Resolution:1mmHg

Accuracy:+-5mmHg

SpO2:

Measuring Range:0 ~ 100 %

Alarm Range:0 ~ 100 %

Resolution:1 %

Accuracy:70% ~ 100%  ±2 %

Actualization interval:about 1 Sec.

Alarm Delay:10 Sec.

Pulse Rate :0~254bpm

Resolution:1bpm

Accuracy:±2bpm

Temperature:

Measuring and Alarm Range:0 ~ 50 C

Resolution:0.1C

Accuracy:0.1C

Actualization interval:about 1 Sec.

Average Time Constant:< 10 Sec.

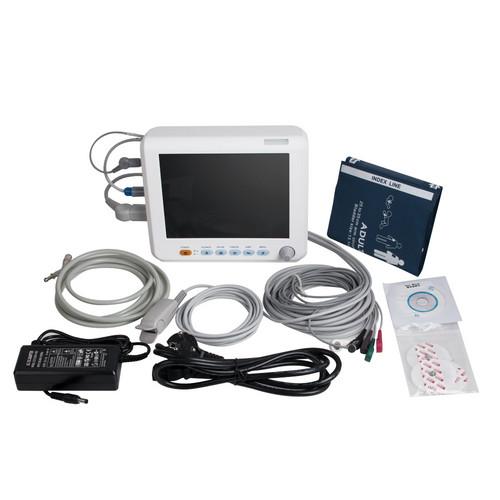

Package List:

Patient monitor

Temperature probe

ECG lead cable

ECG electrode

Adult NIBP cuff

NIBP extension tube

Adult fingertip SpO2 probe

Power cord



User Manual
